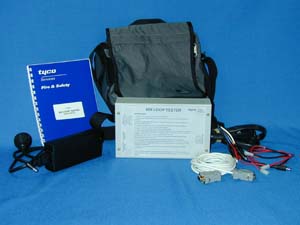

MX Loop Tester
| The MX Loop Tester can be used
to test, commission and fault-find a loop of MX
analogue addressable detectors and ancillary
devices, without having to connect the loop to a
fire panel. Up to 250 MX
devices may be connected. One Person Installation Mode allows
new devices to be installed and field tested to confirm
operation. Auto Addressing Mode automatically sets the
address of any un-programmed device that is added. Walk
Test Mode provides a fast alarm response. A laptop (running a
terminal program) connected to the unit can be used
for operation, display and additional tests and commands.
|
|
Features
- Identifies all
detectors / modules on the loop, determining
their addresses and device types. Over-addressed
(>250), unknown device types, and, generally,
duplicate addressed devices are recognised.
- Monitors analogue
values to
determine device status.
- Provides alarm test for devices (detectors) that support it.
- Allows Walk Test. Any
device going into alarm will be shown on the
laptop together with its address and time. Walk
Test Status (reporting devices / detectors that
have not been tested yet) can be requested. Walk
test mode overrides detection algorithm delays
for fast testing.
- Monitors loop current
and loop status, identifying loop open / short
and over-current conditions. Details devices
present on each side of a broken loop (so that
the position of the break or tripped isolator can
be determined).
- Commands to operate device LED
and control output modules (relays and sounders).
- One Person Installation Mode:
Allows addition and field testing of devices without a laptop.
- Auto Addressing Mode:
Automatically programs new unaddressed devices with next available
address.
- 1,000 event history can be
displayed.
- Powered from 110V/230V
mains supply via 24V, 3A plug pack, or from 24V
batteries if mains supply not available (batteries not included).
- Up to 250 MX
devices per loop.
- 2km unscreened cable;
loop, lines and spurs supported.
- 1 A drive current for
loop devices.
- MX Photo/Heat
Detectors– 801PH, 811PH, 812PH, 814PH, 816PH, 813P, 814P
and 816P (photo
only).
- MX CO/Heat
Detectors– 801CH, 811CH, 812CH and 814CH.
- MX CO/Photo/Heat Detectors
- 801PC.
- MX Ionisation
Detectors– 801I, 812I and 814I.
- MX Heat
Detectors– 801H, 811H, 812H, 814H and 816H.
- MX Flame Detectors - 801F,
811F.
- VESDA LaserCOMPACT
– VLC800MX.
- MX Call Points – CP820,
CP830, CP820M, CP830M, DIN820i, DIN830i, GAR800,GARA800, RMS800.
- MX Input
Monitor – MIM800, MIM801, CIM800, DIM800,
DDM800, BDM800, LAV800.
- MX Output Control –
RIM800, SNM800, LPS800, SAM800, SAB800, SAB801.
- MX Input Output Modules -
SIO800, DIO800, MIO800, APM800, AZM800.
- MX Intrinsically Safe (Ex)
devices – 801PHEx, 801CHEx, 801HEx, 801FEx, 811FEx, S271i+, S271f+, CP840Ex,
IF800Ex.
- MX Potentially Explosive
Atmosphere - Type of Protection "n" - 811PHExn, 811CHExn, 811HExn,
CP830Exn.
- Detailed diagnostics and
commissioning modes via laptop.
- Everything needed for testing
(including User Manual, but not laptop) is kept inside a handy
multi-pocket carry bag (supplied).
- Flash-based firmware allows field
reprogramming/upgrade.
- Order Code (Part Number): FP0898
(Aust/NZ/Fiji), 557.203.021 (UK/Europe).
- Dimensions:
- Unit
: 200mm x 122mm x 46mm; Weight : 2kg
- Carry bag :
250mm x 250mm x 70mm
|
